Practical doors that make compartment access and security easy




Laminated Premium parts

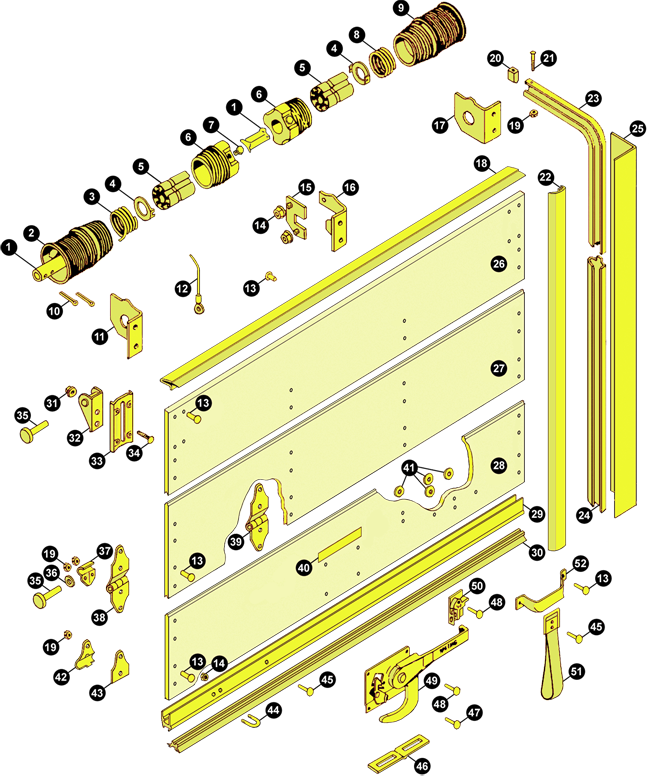

THE Laminated Premium Door PARTS

  • # Part Number   Description
    1 2528.XX Shaft for 2376 balancer (specify length)
    2 2547 Roadside cable drum & bearing assembly
    3 2704.XXX.XX Roadside spring, 2  3/16" ID (specify gauge & length)
    4 2522 Thrust washer
    5 2471 Spring spacer
    6 2518 Winding cone with universal thread (incl #7)
    7 2699 Set screw
    8 2705.XXX.XX Curbside spring, 2  3/16" ID (specify gauge & length)
    9 2548 Curbside cable drum & bearing assembly
    -- 2376.XXX.XX.XXX Complete balancer assembly (#1 - #9) (specify length and spring info)
    10 10.1009.8 Cotter pin (3/16" x 1  1/2")
    11 2524 Roadside 2376 balancer bracket
    12 1.XXX Stainless steel cable with 5/16" eye (specify length)
    13 10.1002.23 Rivet (1/4" x 1, 3/4" HD)
    13alt 10.1003.13 Step bolt (1/4" - 20 x 1  1/4")
    14 10.1033.2 Torque nut (5/16" - 18)
    15 2526 Clamp assembly with studs
    16 2525 Center 2376 balancer bracket
    17 2523 Curbside 2376 balancer bracket
    18 4032.98 Top seal assembly, 98" long
    19 10.1022.1 Keps nut (1/4" - 20)
    20 83 2" rubber track stop bumper
    21 10.1010.3 Hex head cap screw (1/4" - 20 x 2  1/2")
    22 5377.XXX Optional dual durometer side seal for 1/2" spacing (specify length)
    23 11.XXXX 2" horizontal track (specify length, radius, Curbside/Roadside)
    24 1031.XXXXX 2" vertical track (specify length, Roadside/Curbside)
    25 61.XXXXX 2  1/4" mounting angle (specify length)
    26 Call Top Laminated Premium panel only (specify height & width)
    27 Call Intermediate Laminated Premium panel (specify height & width)
    28 Call Bottom Laminated Premium panel only (specify height & width)
  • # Part Number   Description
    -- Call Complete bottom panel with all hardware (specify height & width)
    29 8280.96 Beveled aluminum bottom U-channel, 96" long
    30 5735.96 Bottom seal, 96"
    31 10.1063.1 Serrated flange lock nut (5/16" - 18)
    32 6943 Top closure slide
    33 1264 Top closure base bracket (incl. #31, #34)
    34 10.1005.9 Bolt (5/16" x 5/8")
    -- 6944 Complete top closure assembly (incl #32, #33)
    35 3228 2" nylon tread roller with 3" shaft
    35alt 2996 2" enclosed bearing steel roller with 3" shaft
    36 66 Spacer washer
    37 1208 Roller hinge cover clamp
    38 1207 Roller hinge
    -- 1209 Complete roller hinge assembly (incl. #19, #37, #38)
    39 15 Center hinge
    40 808 "Do not move..." decal
    41 10.1006.9 Flat washer (1/4" x 3/4")
    42 1021 Bottom roller shaft cover
    43 1370 Bottom roller stud plate
    -- 1371 Complete bottom roller bracket (incl #19, #42, #43)
    44 70.13 1  1/4" u-bolt
    45 10.1002.68 Plated rivet (1/4" x 1  1/8", 3/4" HD)
    46 2804.0 Latch plate
    46alt 2804.1 Stainless steel latch plate
    47 10.1002.45 Rivet (1/4" x 1  5/16", 1/2" HD)
    48 10.1002.49 Rivet (1/4" x 1  1/8")
    49 77W Standard outside cam lock
    50 7515 Handle keeper assembly for #49
    51 9723WXX Pull down strap (specify length)
    52 1715W00 Grab handle
