ArtLIFT®

Effortlessly load and unload those heavy cylinders




ArtLIFT: Makes Light Work of Heavy Jobs



ArtLIFT FLC

ArtLIFT FLC

APPLICATIONS

Moving of oxygen cylinders, Industrial gas cylinders

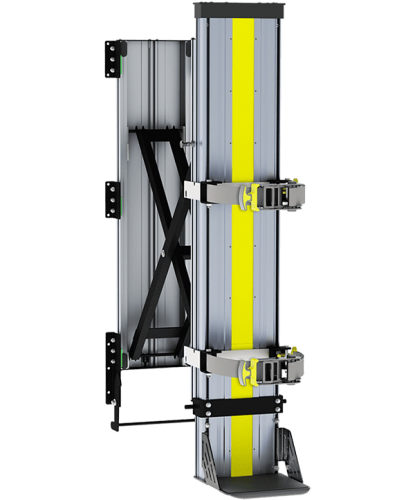

Specially designed for the emergency services industry, the ArtLIFT FLC electric loading system helps your staff move heavy cylinders in and out of ambulances, fire apparatus, service trucks, and other specialty vehicles. In addition to improving efficiency by lifting loads quickly, a heavy cylinder lift will help ensure that risks to the health of your employees are minimized by removing unnecessary lifting. The sleek, rear-mount design maximizes the available space in vehicle compartments. The ArtLIFT FLC can accommodate nearly any lifting stroke to suit a variety of floor heights and vehicles and offers a 220lb (100kg) lifting capacity.

The ArtLIFT FLC can be deployed in seconds while offering a smooth, quiet, and controlled lifting action to protect cylinders during lifting. In addition to the space saved by using an electric loading system over bulky hydraulics or pneumatics, electric systems are more energy-efficient, require less maintenance, and offer increased safety as there are no fluids which can create a potential fire hazard.

The ArtLIFT FLC has been designed with safety in mind. Built-in sensors prevent operation unless it is fully deployed. The free-running system offers drive motor protection, to ensure reliable operation time and time again. For emergency applications, the ArtLIFT FLC is third-party certified to comply with the NTEA Ambulance Manufacturers Division Standard 003 for oxygen tank retention systems. The increased efficiency and productivity combined with reduced staff injuries makes the ArtLIFT a powerful addition to your fleet.

CONTACT US
ARTLIFT ELC

ArtLIFT ELC

KEY FEATURES

  • Improved operator efficiency and safety
  • Controlled loading/unloading protects valuable cargo
  • Designed to suit a variety of vehicle configurations and floor heights
  • Electric system avoids the issues associated with hydraulic and pneumatic systems
  • Can be installed quickly across a wide range of commercial vehicles
  • Lightweight construction preserves payload capacity

APPLICATIONS

Heavy equipment, Super single wheel/tire assemblies, Bomb robots, Jumper bags, Stanley power packs, Generators, Urban deliveries, Side/rear mount capabilities, Mechanic trucks used for mobile 02 cylinder testing/delivery

ARTLIFT ELC MODELS

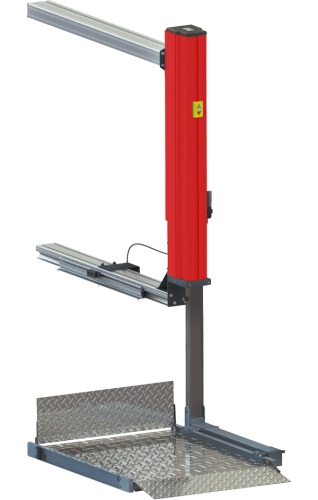

Improve the safety of your staff and increase efficiency with the ArtLIFT ELC electric loading system. The ArtLIFT ELC enables heavy goods to be quickly and easily loaded or unloaded, in situations where a conventional lift-gate would be too heavy or take up too much space. We understand the need to maximize every available inch of available space in your compartments, so the ArtLIFT uses a compact design which can be installed or retrofitted on the left-hand, right-hand, or rear doors, allowing easy customization to fit your needs. The relatively low weight (187-230 lbs depending on the model) of the ArtLIFT ELC also preserves payload capacity. With three different models to accommodate a range of lifting strokes from 23.6” to 39.4” (60-100cm) and a 440lb (200kg) lifting capacity, there is a heavy-duty solution available to suit a variety of floor heights and vehicles.

The ArtLIFT ELC can be deployed in seconds while offering a smooth, quiet, and controlled lifting action to protect valuable cargo. In addition to the space saved by using an electric loading system over bulky hydraulics or pneumatics, electric systems are more energy-efficient, require less maintenance, and offer increased safety, as there are no fluids which can create a potential fire risk. Crafted from robust, quality automotive components, the ArtLIFT ELC is a durable lift that will provide many years of reliable service.

VIEW SPECIFICATIONS

ARTLIFT® ELC Specifications

  ELC-60 ELC-70 ELC-100
Lifting Capacity 440 lbs / 200 kg 440 lbs / 200 kg 440 lbs / 200 kg
Operating Stroke 23.6" / 60 cm 27.5" / 70 cm 39.4" / 100 cm
System Weight 187 lbs / 85 kg 220 lbs / 100 kg 230 lbs / 105 kg
Operating Voltage 12 or 24 VDC* 12 or 24 VDC* 12 or 24 VDC*
LH/RH Side Door Access Y Y Y
Rear Door Mount Y Y Y
Platform Illumination Optional Optional Optional
Remote Control Optional Optional Optional
Safety Point System Optional Optional Optional
