Practical doors that make compartment access and security easy




Beverage parts

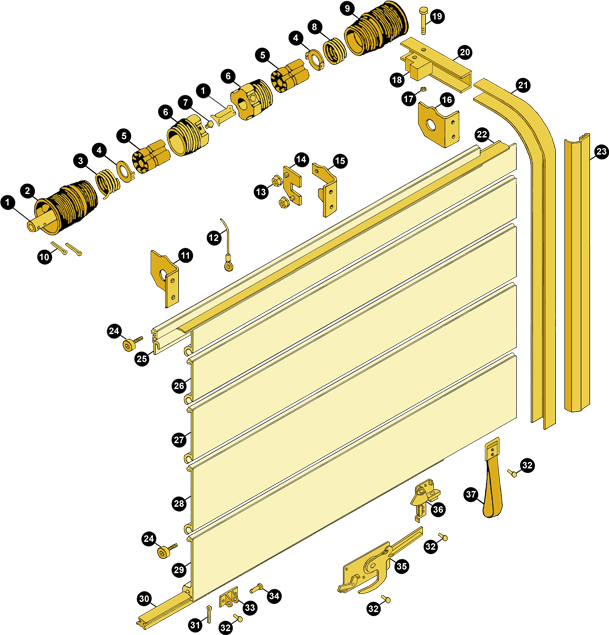

THE Beverage Door PARTS

  • # Part Number   Description
    1 2528.XX Shaft for 2376 balancer (specify length)
    2 2547 Roadside cable drum & bearing assembly
    3 2704.XXX.XX Roadside spring, 2 3/16" ID (specify gauge & length)
    4 2522 Thrust washer
    5 2471 Spring spacer
    6 2518 Winding cone (universal thread)
    7 2699 Set screw
    8 2705.XXX.XX Curbside spring, 2 3/16" ID (specify gauge & length)
    9 2548 Curbside cable drum & bearing assembly
    -- 2376.XXX.XX.XXX Complete balancer assembly (specify length and spring info)
    NOTE:  SMALLER DOORS MAY UTILIZE A 2376 STYLE BALANCER
    10 10.1009.8 Cotter pin (3/16 x 1 1/2)
    11 2524 Roadside 2376 balancer bracket
    12 1.XXX Stainless steel cable with 5/16" eye (specify length)
    13 10.1033.2 Torque nut (5/16 - 18)
    14 2526 Clamp assembly with studs
    15 2525 Center 2376 balancer bracket
    16 2523 Curbside 2376 balancer bracket
    17 10.1022.1 Keps nut (1/4 - 20)
    18 1971 1" rubber track stop bumper
  • # Part Number   Description
    19 10.1010.4 Hex head cap screw (1/4 - 20 x 1 1/2)
    20 1196 1" straight track (specify length)
    21 119X.X 1" curved track (specify radius, length, Curbside/Roadside)
    22 2037 Vinyl top seal (specify length)
    23 5423 Vinyl side seal (specify length)
    24 3500 1" alignment roller - screw in type
    25 1707.1 Top seal retainer
    26 1028 3 3/8" intermediate beverage panel (specify width)
    27 1266 5" intermediate beverage panel (specify width)
    28 2118 6" intermediate beverage panel (specify width)
    29 5970 6" bottom beverage panel (specify width)
    30 1192 Bottom seal (specify length)
    31 10.1009.7 Cotter pin (1/8 x 3/4)
    32 10.1054.3 1/4" pull type aluminum rivet
    33 30.1 Cable anchor
    34 10.1004.1 Clevis pin (5/16 x 1)
    35 6977 Light weight cam lock
    36 6978 Light weight handle keeper
    37 9723.XX Pull down strap (specify length)
