Practical doors that make compartment access and security easy




Aluminum Clad parts

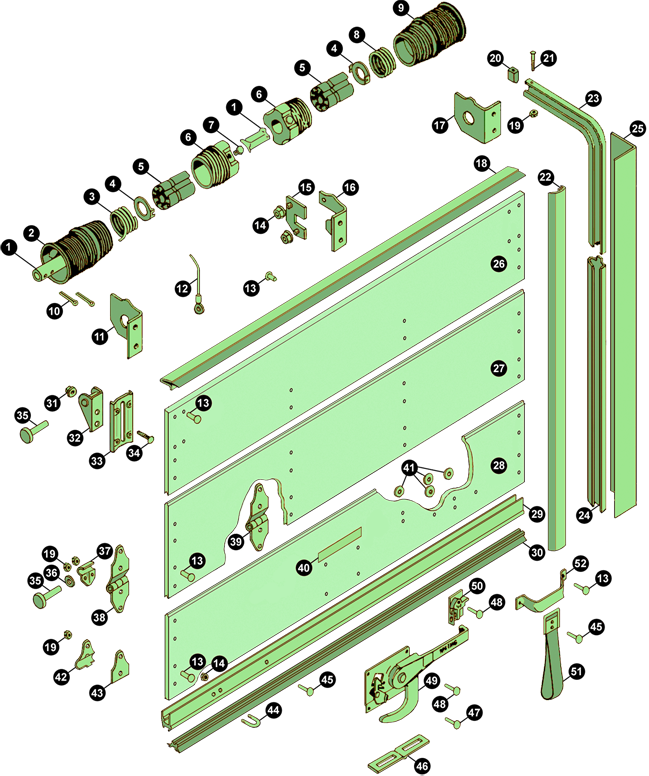

THE Aluminum Clad Door PARTS

  • # Part Number   Description
    1 2528.XX Shaft for 2376 balancer (specify length)
    2 2547 Roadside cable drum & bearing assembly
    3 2704.XXX.XX Roadside spring, 2  3/16" ID (specify gauge & length)
    4 2522 Thrust washer
    5 2471 Spring spacer
    6 2518 Winding cone with universal thread (incl #7)
    7 2699 Set screw
    8 2705.XXX.XX Curbside spring, 2  3/16" ID (specify gauge & length)
    9 2548 Curbside cable drum & bearing assembly
    -- 2376.XXX.XX.XXX Complete balancer assembly (#1 - #9) (specify length and spring info)
    10 10.1009.8 Cotter pin (3/16" x 1  1/2")
    11 2524 Roadside 2376 balancer bracket
    12 1.XXX Stainless steel cable with 5/16" eye (specify length)
    13 10.1002.3 Rivet (1/4" x 1, 3/4" HD)
    13alt 10.1003.8 Step bolt (1/4" - 20 x 1  1/4")
    14 10.1033.2 Torque nut (5/16" - 18)
    15 2526 Clamp assembly with studs
    16 2525 Center 2376 balancer bracket
    17 2523 Curbside 2376 balancer bracket
    18 4032.98 Top seal assembly, 98" long
    19 10.1022.1 Keps nut (1/4" - 20)
    20 83 2" rubber track stop bumper
    21 10.1010.3 Hex head cap screw (1/4" - 20 x 2  1/2")
    22 5377.XXX Optional dual durometer side seal for 1/2" spacing (specify length)
    23 11.XXXX 2" horizontal track (specify length, radius, Curbside/Roadside)
    24 1031.XXXXX 2" vertical track (specify length, Roadside/Curbside)
    25 61.XXXXX 2  1/4" mounting angle (specify length)
    26 Call Top Aluminum Clad panel only (specify height & width)
    27 Call Intermediate Aluminum Clad panel (specify height & width)
    28 Call Bottom Aluminum Clad panel only (specify height & width)
  • # Part Number   Description
    -- 348.000 Complete bottom panel with all hardware (specify height & width)
    29 8280.96 Beveled aluminum bottom U-channel, 96" long
    30 5735.96 Bottom seal, 96"
    31 10.1063.1 Serrated flange lock nut (5/16" - 18)
    32 6943 Top closure slide
    33 1264 Top closure base bracket (incl. #31, #34)
    34 10.1005.9 Bolt (5/16" x 5/8")
    -- 6944 Complete top closure assembly (incl #32, #33)
    35 3228 2" nylon tread roller with 3" shaft
    35alt 2996 2" enclosed bearing steel roller with 3" shaft
    36 6 Spacer washer
    37 1208 Roller hinge cover clamp
    38 1207 Roller hinge
    -- 1209 Complete roller hinge assembly (incl. #19, #37, #38)
    39 15 Center hinge
    40 808 "Do not move..." decal
    41 10.1006.1 Flat washer (1/4" x 3/4")
    42 1021 Bottom roller shaft cover
    43 1370 Bottom roller stud plate
    -- 1371 Complete bottom roller bracket (incl #19, #42, #43)
    44 70.13 1  1/4" u-bolt
    45 10.1002.11 Plated rivet (1/4" x 1  1/8", 3/4" HD)
    46 2804.0 Latch plate
    46alt 2804.1 Stainless steel latch plate
    47 10.1002.9 Rivet (1/4" x 1  5/16", 1/2" HD)
    48 10.1002.36 Rivet (1/4" x 1  1/8")
    49 77 Standard outside cam lock
    50 7515 Handle keeper assembly for #49
    51 9723.XX Pull down strap (specify length)
    52 1715.00 Grab handle
