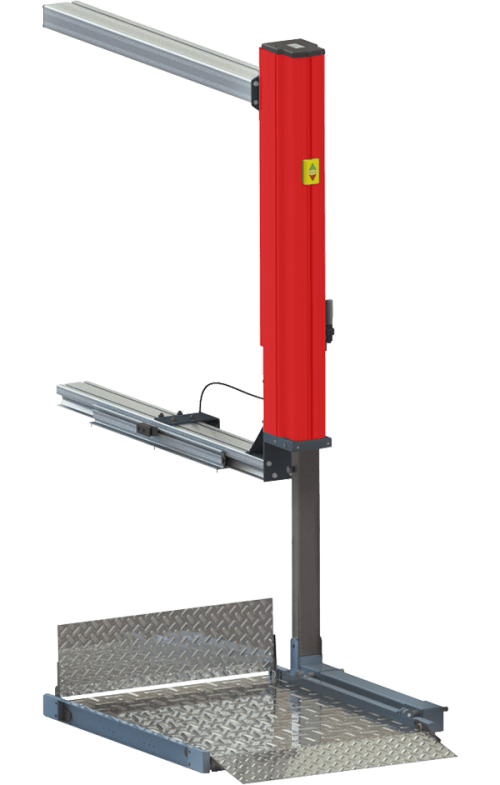

ArtLIFT ELC
EFFICIENTLY LOAD & UNLOAD HEAVY EQUIPMENT
Key Features
- Improved operator efficiency and safety
- Controlled loading/unloading protects valuable cargo
- Designed to suit a variety of vehicle configurations and floor heights
- Electric system avoids the issues associated with hydraulic and pneumatic systems
- Can be installed quickly across a wide range of commercial vehicles
- Lightweight construction preserves payload capacity
Applications
Heavy equipment, Super single wheel/tire assemblies, Bomb robots, Jumper bags, Stanley power packs, Generators, Urban deliveries, Side/rear mount capabilities, Mechanic trucks used for mobile 02 cylinder testing/deliveryARTLIFT ELC MODELS
ELC-60 | ELC-70 | ELC-100 | |
Lifting Capacity | 440 lbs / 200 kg | 440 lbs / 200 kg | 440 lbs / 200 kg |
Operating Stroke | 23.6" / 60 cm | 27.5" / 70 cm | 39.4" / 100 cm |
System Weight | 187 lbs / 85 kg | 220 lbs / 100 kg | 230 lbs / 105 kg |
Operating Voltage | 12 or 24 VDC* | 12 or 24 VDC* | 12 or 24 VDC* |
LH/RH Side Door Access | Y | Y | Y |
Rear Door Mount | Y | Y | Y |
Platform Illumination | Optional | Optional | Optional |
Remote Control | Optional | Optional | Optional |
Safety Point System | Optional | Optional | Optional |
Improve the safety of your staff and increase efficiency with the ArtLIFT ELC electric loading system. The ArtLIFT ELC enables heavy goods to be quickly and easily loaded or unloaded, in situations where a conventional lift-gate would be too heavy or take up too much space. We understand the need to maximize every available inch of available space in your compartments, so the ArtLIFT uses a compact design that can be installed or retrofitted on the left-hand, right-hand, or rear doors, allowing easy customization to fit your needs. The relatively low weight (187-230 lbs depending on the model) of the ArtLIFT ELC also preserves payload capacity. With three different models to accommodate a range of lifting strokes from 23.6” to 39.4” (60-100cm) and a 440lb (200kg) lifting capacity, there is a heavy-duty solution available to suit a variety of floor heights and vehicles.
The ArtLIFT ELC can be deployed in seconds while offering a smooth, quiet, and controlled lifting action to protect valuable cargo. In addition to the space saved by using an electric loading system over bulky hydraulics or pneumatics, electric systems are more energy-efficient, require less maintenance, and offer increased safety, as there are no fluids that can create a potential fire risk. Crafted from robust, quality automotive components, the ArtLIFT ELC is a durable lift that will provide many years of reliable service.
