Mechanical Door Ajar Switch

Over the years many customers have had negative experiences with competing brands of magnetic door ajar switch systems. In response to those requesting a non-magnetic door ajar switch solution AMDOR developed a sealed mechanical switch system. Using a push-button trigger within the striker, this mechanical system detects when the door has been left open and sends an alert to the driver. The primary benefit of this system is that the switch may only be activated by positive engagement of the lift bar. The military-grade switch is hermetically sealed for protection against water and debris. Each system is tested one million times under load, and in conjunction with Luma Bar® Integral lights, for NFPA compliance. This mechanical switch is designed to be utilized as a trigger to the ground with a conventional automotive relay handling power distribution. The mechanical door ajar system is suitable for both new and retrofit applications.

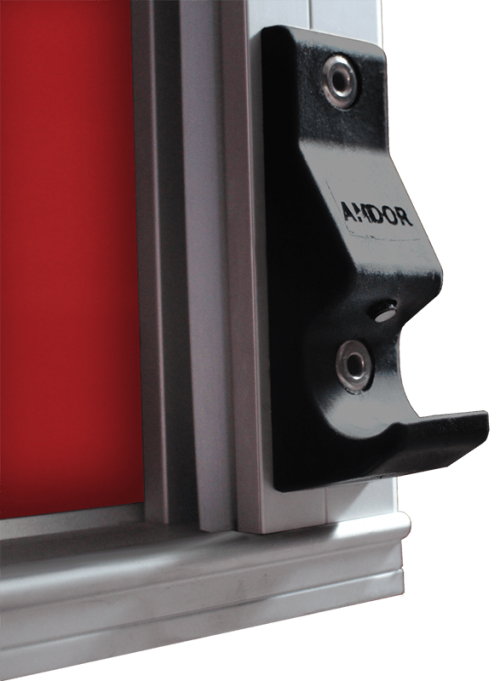

• Mounting Position: The push-button is located within the striker and operates as an on/off switch. When utilized in conjunction with a relay, the switch will control compartment lights and provide a signal to indicate an unlatched door.
• Trigger Switch: Features a military-grade push-button that is protected from ingression of water and debris
• Key Technical Specifications: The AMDOR NFPA compliant door ajar system has been tested to 1-million cycles under load with the Luma Bar Integral compartment lighting system
• Suitable for OEM or Retrofit applications: Kit includes (2) AMDOR Strikers, (1) featuring the Mechanical Door Ajar Switch. Ships complete with rivets when not pre-installed
